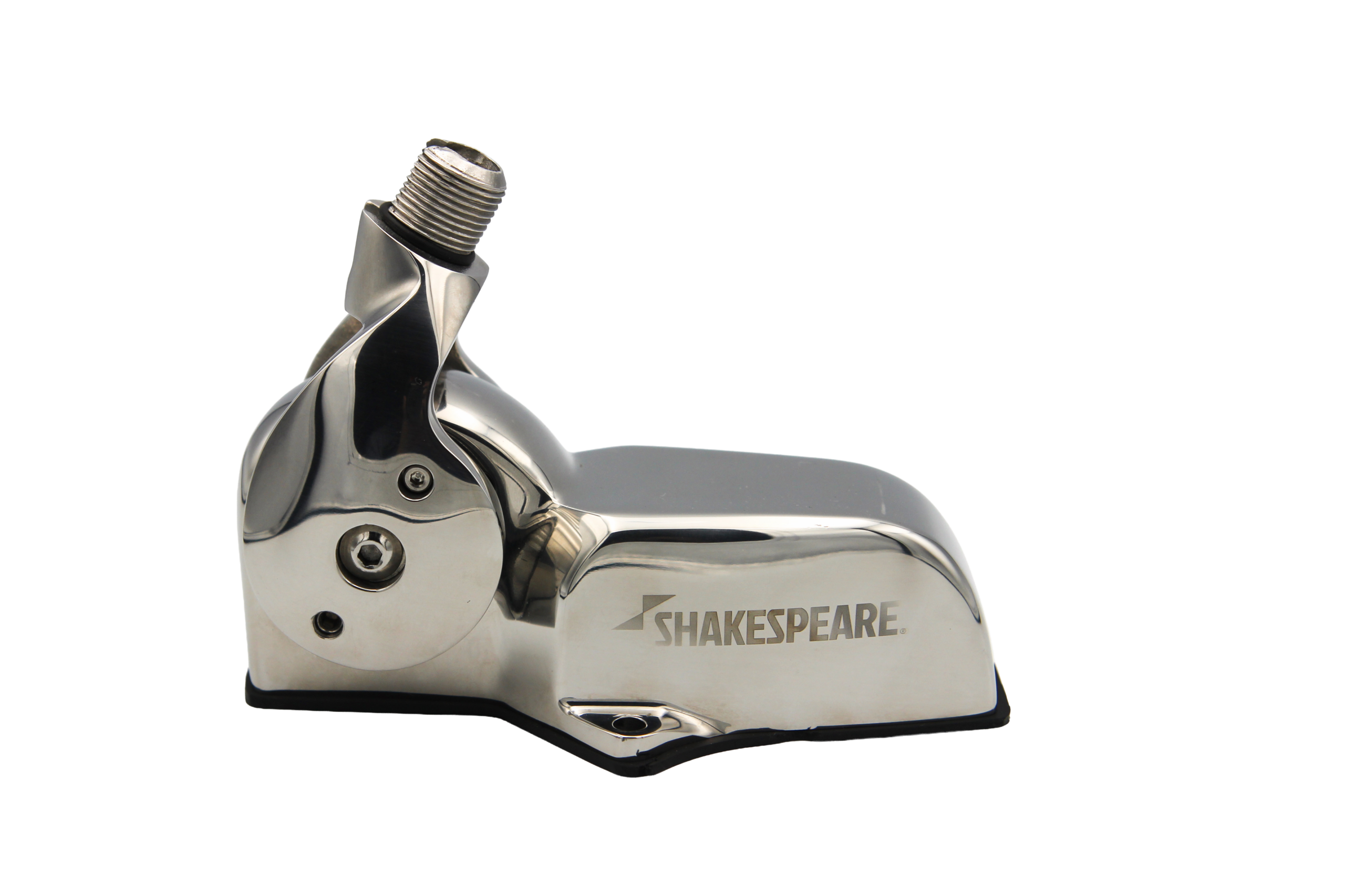

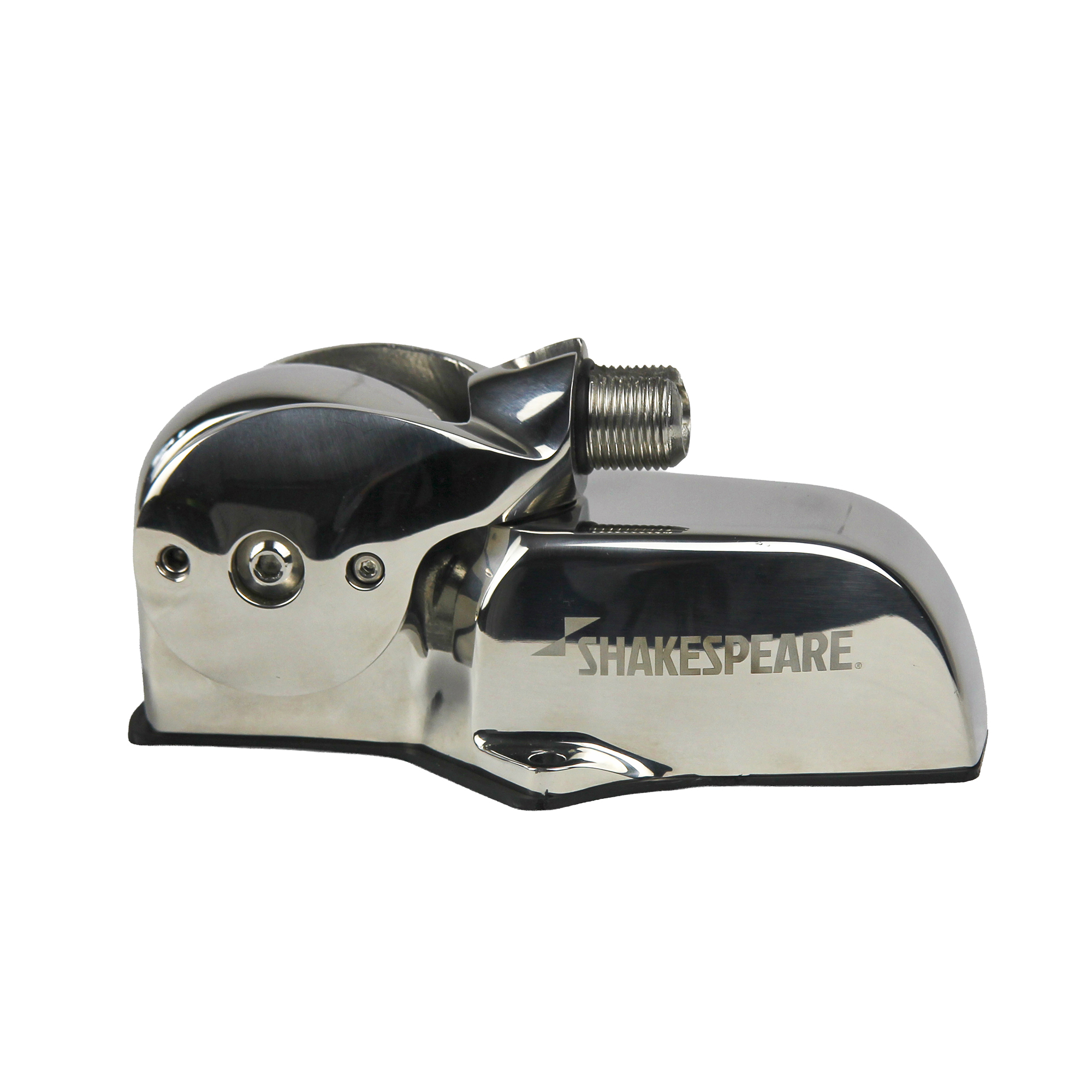

Motorized Antenna Mount

Engineered for dependable performance and effortless efficiency, Shakespeare’s Marine Motorized Antenna Mount delivers unmatched control and reliability for demanding marine environments. Designed with marine-grade materials and sealed for all-weather performance, this rugged mount ensures long-term durability even in the harshest saltwater conditions. Its motorized tilt system allows antennas to be raised or lowered, while minimizing the need for manual handling. With sleek design, shock-resistant construction, and effortless push-button operation, the Motorized Antenna Mount is the ideal solution for convenient, secure antenna deployment on any vessel.

PRODUCT HIGHLIGHTS:

• • • • Full 0° – 90° Range of Motion
      • Endurance Tested to 1,500 Cycles
      • Corrosion-Resistant 316 Stainless Steel
      • Push-Button Raise & Lower Operation
      • Enclosed Gear Drive for Extended Service Life
      • 10” Cable for Installation (Switch NOT Included)
      • Low Power Draw (<1.5 Amps)
      • Withstands Harsh Saltwater Environments
      • Universal Antenna Compatibility with all Standard 1″-14 Marine Antennas up to 8′
      • Supports 12V Electrical Systems
      • FCC/CE Certified

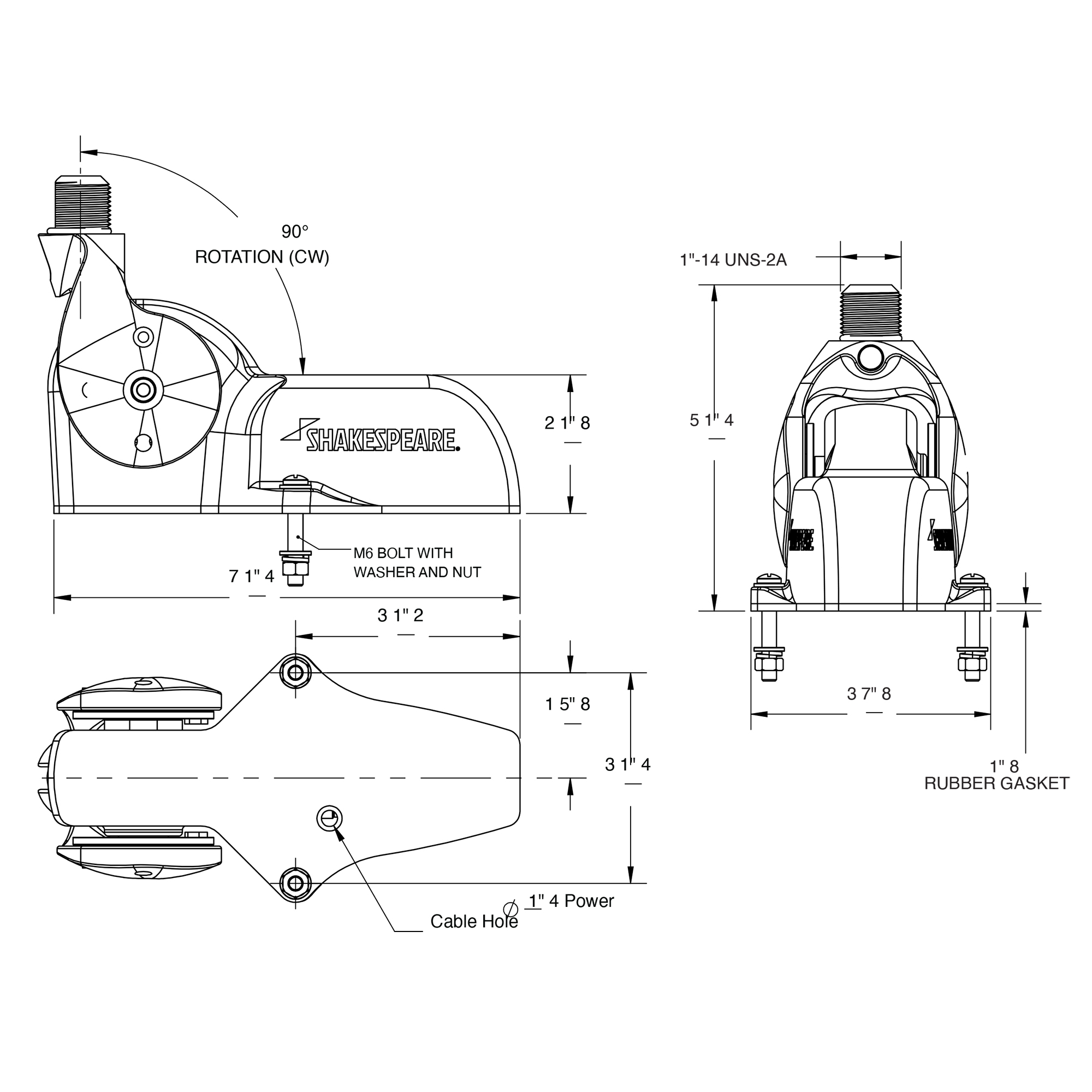

9187-MM DATA SHEET
